Implementing the Expect-Staple Header on NetScaler

Since my old Blogpost regarding the various HTTP Security Headers got a lot of Traffic I decided to write a new Post because since then there are now two more major HTTP Headers worth considering.

The first one is Expect-Staple and the other one is Expect-CT. As with all the other HTTP Security Headers I recommend reading Scott Helme's Blog explaining all the finer Details of those two Headers (Expect-Stapling and Expect-CT).

But this Blogpost is all about the Expect-Staple Header, so let's get cracking.

Requirements:

Before deploying the Header you should have configured OCSP Stapling on the vServer you are going to bind the new Header to or you will get a lot of Reports to your Reporting URL. And speaking of a Report URL you should have a Service where to send those Reports in case the Expect-Staple Header is being triggered. I can recommend report-uri.com if you need one.

Implementation:

Currently there is no enforce Directive for the Expect-Staple Header so you can't break your Site by accidentally deploying a wrong Header Value like you could do with the HPKP Header. The Expect-Staple Header is basically a Report-Only Header (for now).

  • As with all other Headers we start by creating a new Rewrite Action and a Rewrite Policy. Create the Expect-Staple Action as seen in the Screenshot below:
Name: rw_act_insert_Expect-Staple_header
Type: INSERT_HTTP_HEADER
Header Name: Expect-Staple
Expression: "max-age=0; report-uri=https://example.report-uri.com/r/d/staple/reportOnly; includeSubDomains; preload"

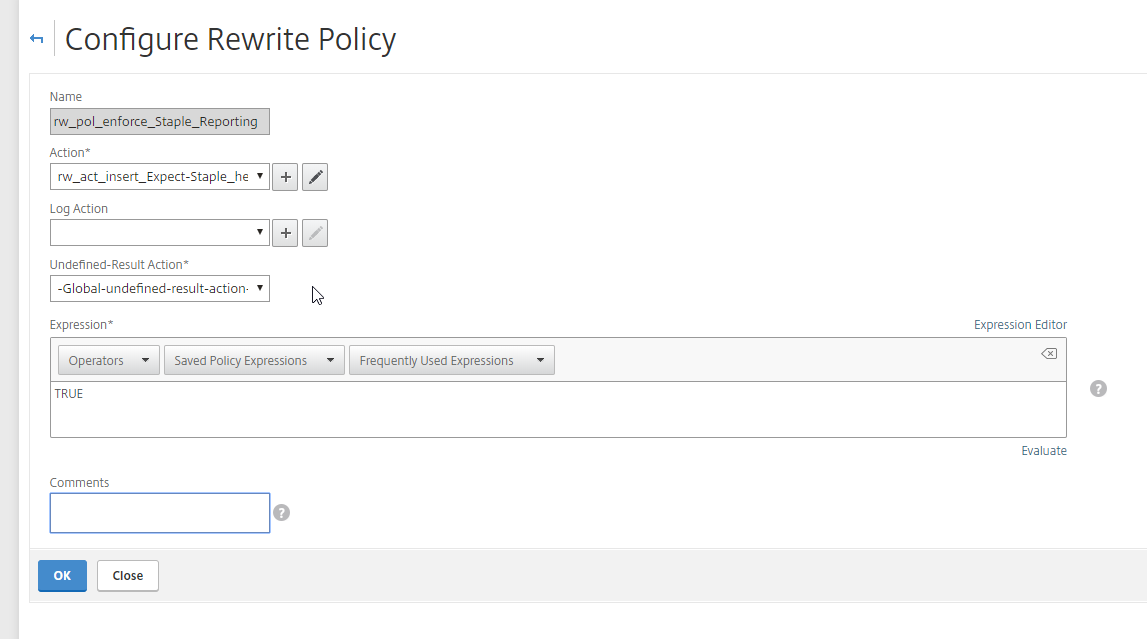

  • Next up is the Expect-Staple Rewrite Policy:
Name: rw_pol_enforce_Expect-Staple_Reporting
Action: rw_act_insert_Expect-Staple_header
Expression: TRUE

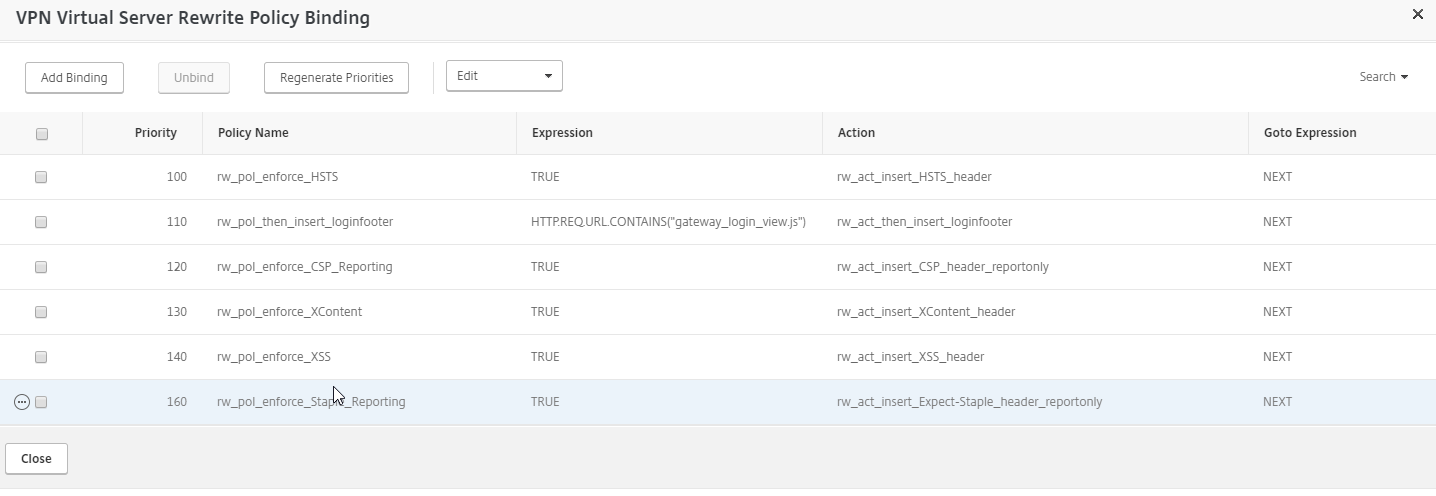

  • And as a last Step you need to bind the new Rewrite Policy to your NetScaler Gateway/Content Switching vServer or Load Balancing vServer where you want to deploy the new Header.

You can check the correct Implementation with the securityheaders.io Test. It should look something like this:

Congratulations, another Header deployed! Now you should receive Reports (to your Report URI) whenever something went wrong with the OCSP Stapling when someone visits your vServer. If your OCSP Stapling Implementation (in our case the Stapling Implementation of the NetScaler) proves to be staple you can think about requesting a Certificate with the new OCSP Must-Staple Extension but thats reserved for another Blogpost.

Comments and Feedback is as always welcome. I would be especially interested if you are already using the OCSP Stapling Implementation and your Experiences with it.

NetScaler Ciphers and the ROBOT Attack

Here we are again with another Vulnerability related to the SSL/TLS Ecosystem called the ROBOT Attack (robotattack.org) and that usually means the NetScaler is also affected or you need to change some part of your SSL/TLS Configuration.

Besides updating your NetScaler Firmware to one of the latest Builds (see CTX230238 for fixed Builds) you need to remove all Ciphers starting with TLS_RSA from your Cipher List. Below is a Cipher List where all the Ciphers with RSA Encryption are removed to prevent the ROBOT Attack.

You could alternatively also use the Modern Compatibility Cipher List:

https://docs.citrix.com/en-us/receiver/windows/4-7/configure/ica-import-icaclient-template-v2.html

Important Note: Only Citrix Receivers for Windows starting with Version 4.7 or higher can connect to your published Desktops/Applications after applying the new Cipher List. This is because ECDHE Cipher Support was first implemented with Receiver 4.7 and we have removed all the other supported Ciphers starting with TLS_RSA_*.

You can see a List of supported Ciphers for the Citrix Receiver starting with Version 4.7 below:

https://docs.citrix.com/en-us/receiver/ios/7/secure-communications.html

Update #1: I had to learn the hard way that the Citrix iOS Receiver 7.4 can't work with the posted Cipher Lists because the iOS Receiver only supports Ciphers starting with TLS_RSA_*.

Hopefully Citrix will soon release a new Version with additional Cipher Support.

Update #2: The Problem with the Citrix iOS Receiver has been fixed in the 7.5 Version. You can now use the new Cipher List with the latest iOS and Android Receivers.

Verification:

As always test your updated Configuration with the SSLLabs Test or use the Comodo SSL Analyzer.

Feedback and Comments is as always very welcome.

NetScaler Cipher Lists - 2017 Edition with ChaCha20 Support

Citrix did release a new NetScaler Release/Firmware in December 2017 with Support for a subset of the ChaCha20 Ciphers, so that means I had to update my Cipher Lists. The NetScaler Firmware starting to support ChaCha20 is 12.0-56.20 and this time the ChaCha20 Ciphers are only supported on VPX Appliances. Let's hope that Citrix will add MPX Support and the Rest of the ChaCha20 Ciphers in a subsequent NetScaler Release.

So here are the updated Cipher Groups:

  • Modern Compatibility:
  • Intermediate Compatibility:

Currently the Intermediate Cipher Group is still vulnerable to the ROBOT Attack because of the Ciphers starting with TLS_RSA. I suggest using the Modern Compatibility Cipher Group to remediate against the ROBOT Attack.

OCSP Stapling and NetScaler 11.1+

Starting with NetScaler 11.1 Build 51.21 the NetScaler now supports OCSP Stapling. Yay!

For more in-depth Information about OCSP Stapling and why you should enable it I recommend reading Scott Helme's Blogpost about OCSP.

But let's get started on how to configure the NetScaler to enable OCSP Stapling (the GUI way).

Requirements

  • NetScaler 11.1  Build 51.21 or later
  • Outbound Firewall Rule to allow the NetScaler Subnet IP (SNIP) to communicate with the External OCSP Responder on Port 80 (HTTP).
  • Existing SSL/TLS Certificate with embedded OCSP Extension (AIA Extension)
  • Working DNS Resolution on NetScaler for "external" URLs

Configuration

First thing is we need to enable the OCSP Stapling Feature on the SSL Profile in case you are using SSL Profiles or the SSL Default Profiles to configure your SSL/TLS Settings. Otherwise you have to enable the OCSP Stapling Feature in the SSL Parameters for every vServer.

You can find it in the GUI under System -> Profiles -> SSL Profile:

2018-01-10 13_10_56.png

You can choose to create a new SSL Profile (FrontEnd) or edit one of the existing ones, for example the ns_default_ssl_profile_frontend Profile. In my example I'm editing the ns_default_ssl_profile_frontend Profile and enabled the OCSP Stapling checkmark and afterwards saved the Configuration.

2018-01-09 12_47_45.png

Next Step is to create a new OCSP Responder. After upgrading to the latest NetScaler Build you will notice that there are one (or more) OCSP Responders automatically generated with the INTERNAL_ Prefix when checking under Traffic Management -> SSL -> OCSP Responder.

2018-01-09 12_50_17.png

These are generated automatically for every OCSP URI found in the Certificates currently imported into the NetScaler. In my Example I'm using a Certificate from RapidSSL (GeoTrust) which is owned by Symantec and hence the *.symcd.com OCSP URI.

You can check the OCSP URL by looking at your Certificate under the AIA Extension.

2018-01-10 12_19_36.png

You can't edit the auto-created INTERNAL_ OCSP Responders so I opted to "duplicate" the INTERNAL_ OCSP Responders and create new ones where I configured some specific Settings.

2018-01-09 12_50_41.png

I disabled the "Nonce" Checkmark and checked the "Trust Responses" Option.

After saving your new OCSP Responder we need to bind it to the CA Intermediate Certificate (not the SSL/TLS Certificate) which issued your SSL/TLS Certificate. Navigate to Traffic Management -> SSL -> Certificates -> CA Certificates and bind the newly created OCSP Responder to the Intermediate CA Certificate.

2018-01-09 12_51_36.png
2018-01-09 12_51_51.png

Last Step to configure is to bind the SSL Profile with enabled OCSP Stapling to your vServer. Or enable the OCSP Stapling Option under SSL Parameters if you are not using SSL Profiles / SSL Default Profiles.

2018-01-09 12_52_33.png

Check your Configuration

Last Step is to check if OCSP Stapling is working as intended. You can use SSLLabs, Comodo SSL Analyzer or OpenSSL CLI to check it.

Comodo CA SSL Analyzer:

2018-01-09 12_55_17.png
2018-01-09 12_57_10.png

OpenSSL: (Command: openssl s_client -connect example.com:443 -tlsextdebug -status)

Troubleshooting:

If none of the Test Tools are reporting the successful OCSP Stapling Support make sure to check that the NetScaler can reach the OCSP Responder on Port 80 (via HTTP) through a possible Firewall. The Traffic should originate from the Subnet IP Adress (SNIP) or NetScaler IP (NSIP).

Also make sure that the NetScaler can resolve the OCSP URI and that the DNS Resolution is working. As most (if not all) Public CAs are using a Content Deliver Network (CDN) for their OCSP Responders configuring a OCSP Responder with a IP is not recommended because the IPs on CDNs might change quite often.

From the NetScaler BSD Shell (not the NetScaler CLI) you can run the following Command which could indicate where the Problem lies: nsconmsg -d stats | grep ocsp

The Counter ssl_err_ocsp_http_callout_failed for example could indicate a Problem reaching the OCSP Responder because of Firewall Problems.

Blogpost Changelog:

#1 - 09.01.2017 - Initial Draft
#2 - 13.01.2017 - added Troubleshooting Command for OCSP Counters

NetScaler and additional HTTP Security Headers

After bringing the SSL/TLS Cipher Suites Setup up to date on our NetScalers it's now time to take a closer look at a few of those HTTP Security Headers (X-Xss-Protection, X-Frame-Options and X-Content-Type-Options) and how to implement them on the NetScaler ADC. For an in depth Explanation what those different Headers really do I will refer you to the excellent Blog from Scott Helme who can explain those Things a lot better than me.

So if you are fronting your Webservers with a NetScaler or you want to enhance the Security of your NetScaler Gateway (formerly also known as Citrix Access Gateway) you might want to implement those HTTP Headers on the NetScaler itself and not directly on your Webservers.

The following Guide and Screenshots were written/taken while using the NetScaler 11.0-63.16.nc Firmware and using the GUI. If you prefer the CLI, all of the needed Commands for adding the 3 Rewrite Rules can be found at the end of the Blogpost.

Enough talk, lets begin:

  • We will create a new Rewrite Action for inserting the X-Frame-Options Header in the GUI under AppExpert -> Rewrite -> Actions -> Add.

Next we will choose a Name for the new Rewrite Action and then select "INSERT_HTTP_HEADER" as the Type. Under Header Name we need to put X-Frame-Options and under Expression we will put "SAMEORIGIN" or "DENY" (depending on your Use Case).

2018-01-09 13_36_04.png

In the next Step we need to create the Rewrite Policy itself in the GUI under AppExpert -> Rewrite -> Policies -> Add. Name the Policy accordingly and under Action select the Rewrite Action we created a Step earlier. As Expression you can use TRUE which will force the NetScaler to always insert the HTTP Header as long as the Policy is being hit/used.

2018-01-09 13_36_46.png

Next Step is to bind the newly created Rewrite Policy to the vServer (or NetScaler Gateway) of your choice. In my example I'm binding it to one of our NetScaler Gateways as a new Response Policy.

2018-01-09 13_37_54.png

Important: If you already have existing Rewrite Policies bound to your vServer and you want them all applied make sure only the last Rewrite Policy (with the highest Priority Number) is using END as the Goto Expression or NetScaler will stop applying your Policies as soon as he hits the first Rewrite Policy with an END Goto Expression.

Reminder: NetScaler is going through those Policies from the lowest to the highest Priority Number and depending on the GoTo Expression after starting with the lowest Policy will either continue (Goto Expression: NEXT) with the next higher Policy or just stop going through all of the remaining Policies (Goto Expression: END).

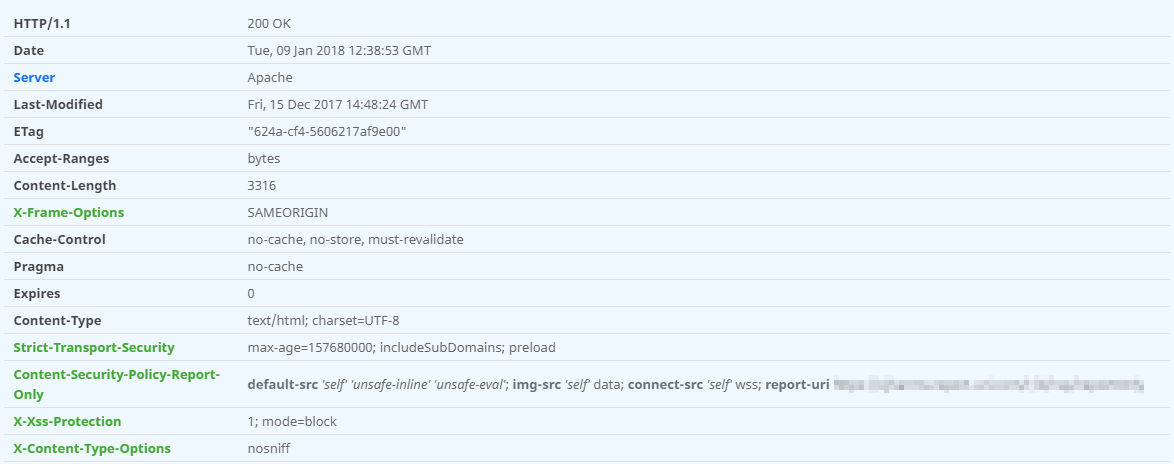

Now it's time to check if we did everything correctly and if all our existing and new Rewrite Policies are still being applied. If your Website (where we bound the new Rewrite Policy) is publicly available you can use the securityheaders.io Site to check if the new HTTP Header is present (note the green X-Frame-Options Badge in the Screenshot). Otherwise you would need to use the "Developer Tools" of your Browser to check if the HTTP Response Headers are being added.

2018-01-09 13_39_16.png

Now we need to repeat the whole Process for the other 2 HTTP Headers (X-Xss-Protection and X-Content-Type-Options). First we create a new Rewrite Action with the X-Xss-Protection Header Name and the Expression Value set to "1; mode=block"

2018-01-09 13_36_15.png

And a new Rewrite Policy for the corresponding Rewrite Action. Again using TRUE as Policy Expression.

2018-01-09 13_36_54.png

And again bind the newly created Policy. Again, pay attention to your Priority and Goto Expression.

2018-01-09 13_37_54.png

And after binding the Policy and saving the running Config make sure the new Policy is working. We should now also see a green Badge with a Checkmark next to the X-Xss-Protection Header in the Test.

2018-01-09 13_39_16.png

And now onto the last HTTP Security Header X-Content-Type-Options. Again create a new Rewrite Action with the Header Name Value of X-Content-Type-Options and the Expression Value set to "nosniff".

2018-01-09 13_36_26.png

And a new Rewrite Policy with TRUE as Expression Value

2018-01-09 13_37_02.png

As always bind your new Rewrite Policy to your vServer. After binding all 3 new Policies to the vServer it looked like this:

2018-01-09 13_39_16.png

Your 3 new Rewrite Actions and their corresponding Rewrite Policies should now all be listed in the GUI.

2018-01-09 13_37_54.png

And again testing with all 3 new Policies bound it should look something like this in the securityheaders.io Test. Implementing Content Security Policy (CSP) on NetScaler is reserved for another Blogpost in the future.

And here are the CLI Commands for creating the 3 Rewrite Actions and Policies if you really hate the GUI or simply enjoy the CLI:

add rewrite action rw_act_insert_XFrame_header insert_http_header X-Frame-Options "\"SAMEORIGIN\""
add rewrite action rw_act_insert_XSS_header insert_http_header X-Xss-Protection "\"1; mode=block\""
add rewrite action rw_act_insert_XContent_header insert_http_header X-Content-Type-Options "\"nosniff\""
add rewrite policy rw_pol_enforce_XFrame TRUE rw_act_insert_XFrame_header
add rewrite policy rw_pol_enforce_XSS TRUE rw_act_insert_XSS_header
add rewrite policy rw_pol_enforce_XContent TRUE rw_act_insert_XContent_header

Thanks again to Scott Helme for writing the great securityheaders.io Site and for providing a lot of Background on those Headers in his Blogposts.

Feel free to leave a Comment with Feedback or Questions, thanks!
